JOYOR User Manuals & Technical Support | Official Hub

Category: Product Guides

Detailed electric scooter reviews, technical specifications, model comparisons, and buying guides to help you choose the right e-mobility ride.

  • First Look: 2026 JOYOR T12 & T12 Ultra Unboxing & Assembly Guide

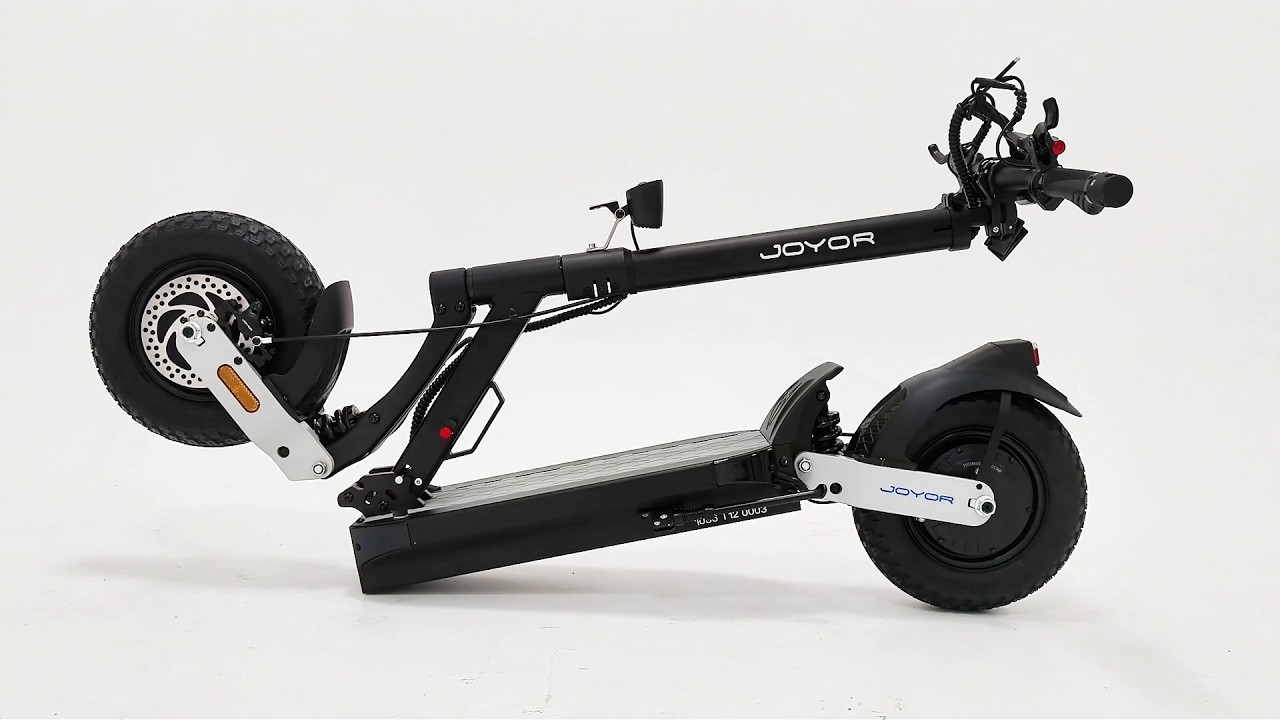

    First Look: 2026 JOYOR T12 & T12 Ultra Unboxing & Assembly Guide

    Get an exclusive first look at the upcoming JOYOR T12 Series! Before its official market release, watch the official step-by-step unboxing and assembly guide video to see how to set up your JOYOR T12 or JOYOR T12 Ultra right out of the box.

    Official Video Guide: JOYOR T12 & T12 Ultra Assembly

    Check out the official unboxing video below to walk through the complete setup process from unboxing to initial powering on:

    Video Source: Official JOYOR ESCOOTER YouTube Channel

    Step-by-Step Assembly Instructions

    1. Unboxing & Stem Tube Preparation

    • Carefully open the package box and lift out the folded main frame assembly.
    • Open the quick-release clamp ring located on the vertical stem.
    • Loosen the inner sunflower screw using the hex key tool to allow vertical tube extension.
    • Tighten and adjust the quick-release clamp ring to proper tension once extended.
    • Completely remove the sunflower screw to prepare for handlebar installation.

    2. Handlebar & Display Assembly

    • Position the handlebar unit securely onto the vertical stem tube.
    • Re-insert and screw the sunflower screw back in to firmly lock the vertical tube and handlebars in place.
    • Tighten the double-pass stem screws evenly on both sides to secure the handlebar alignment.
    • Adjust the central display screen to your preferred viewing angle, then tighten the instrument mounting screws beneath it.
    • Peel off the protective film covering the central smart display.

    3. Unfolding Frame & Securing Locks

    • Release the safety buckle located near the folding joint.
    • Loosen the main folding handle mechanism and pull up the main standpipe.
    • Place one foot firmly on the deck board to secure the scooter body, grip the handlebars with both hands, and push firmly forward until the stem snaps into place.
    • Lock the safety buckle tightly to secure the folding system before riding.

    4. Power On & Initial Check

    • Long-press the multi-function power switch button on the handlebar control pad to power on the central display console.
    • Test headlight, rear taillights, and turn indicators to ensure all lighting functions work smoothly.
    • Verify smart NFC card functionality for locking and unlocking the vehicle system.

    Stay Tuned for the Official Launch

    The JOYOR T12 and JOYOR T12 Ultra represent the next evolution in JOYOR’s premium electric mobility lineup. Full official specifications, regional availability, and pre-order pricing details will be released soon.

    Bookmark our Official Technical Support Hub to get instant access to full technical manuals, user guides, and maintenance tutorials as soon as the T12 Series officially debuts!

  • JOYOR T12 vs T12 Ultra: Official Preview & Assembly Guide

    JOYOR T12 vs T12 Ultra: Official Preview & Assembly Guide

    As electric micro-mobility evolves toward higher endurance and all-terrain versatility, choosing the right vehicle for your daily riding style is critical. JOYOR is officially unveiling two upcoming flagships: the JOYOR T12 (Single Motor Edition) and the JOYOR T12 Ultra (Dual Motor Performance Flagship).

    Both models in the all-new T12 Series are built around heavy-duty tubeless off-road tires and advanced high-capacity battery architectures, catering to different performance tiers and terrain demands. Below is the official overview to help you understand the core differences between both models prior to full release.

    JOYOR T12 Series Core Overview Snapshot

    Here is a high-level comparison outlining the primary functional differences between the single-motor JOYOR T12 and the dual-motor JOYOR T12 Ultra:

    Feature / Category JOYOR T12 (Single Motor) JOYOR T12 Ultra (Dual Motor)
    Motor System Single Rear Hub Motor Dual High-Torque Motors
    Terrain & Climbing Urban Commuting & Mild Incline Steep Off-Road Hills & All-Terrain
    Braking Setup Mechanical Disc Brakes Fully Hydraulic Disc Brakes
    Suspension System Front & Rear Spring Dampers Front & Rear Hydraulic Shocks
    Tire Architecture Heavy-Duty Tubeless Off-Road Tires Heavy-Duty Tubeless Off-Road Tires
    Display & Security Smart Display with NFC Keycard Smart Display with NFC Keycard

    Key Engineering Differences

    1. Single vs. Dual Motor Drive Power

    The standard JOYOR T12 features a single rear hub motor engineered for balanced energy consumption, smooth power delivery, and lightweight maneuverability on paved roads and city inclines. The JOYOR T12 Ultra incorporates dual high-torque motors, providing all-wheel traction to maintain stability on loose gravel, sand, and steep slopes.

    2. Braking Control & Damping Systems

    For enhanced safety during high-speed trail rides, the T12 Ultra is outfitted with fully hydraulic front and rear disc brakes paired with hydraulic shock absorbers. The standard T12 employs dual mechanical disc brakes and heavy-duty coil springs, offering dependable stopping power and low-maintenance daily operation.

    3. Security & Smart System

    Both models come equipped with a central color display console and built-in NFC smart keycard functionality, allowing instant ignition and theft-prevention locking straight from the handlebars.

    Official Video: Unboxing & Assembly Guide

    Watch our step-by-step video tutorial to see the setup process and frame details for the JOYOR T12 Series:

    Watch the official JOYOR T12 Series Assembly Video on YouTube.

    Which Model Should You Choose?

    • Choose JOYOR T12 if: You want a versatile, high-ground-clearance scooter optimized for long-distance daily commuting and lightweight handling.
    • Choose JOYOR T12 Ultra if: You demand maximum all-wheel torque, off-road traction, and advanced hydraulic braking control.


  • GOKEEP F5 Electric Scooter Review: 1000W Power, 52V 20Ah Range & NFC Smart Unlock

    GOKEEP F5 Electric Scooter Review: 1000W Power, 52V 20Ah Range & NFC Smart Unlock

    Introducing the GOKEEP F5 Electric Scooter

    The GOKEEP F5 electric scooter is built for riders seeking a blend of high-torque motor output, rugged frame durability, and long-distance commuting capability. Engineered with an aluminum alloy frame and available in eye-catching Red and Green finish options, the GOKEEP F5 packs a heavy-duty 1000W brushless motor and a high-voltage 52V 20Ah lithium battery pack designed to handle steep hills and varied terrain effortlessly.

    1. Power & Performance: 1000W Motor & 45° Climbing Ability

    At the core of the GOKEEP F5 is its high-torque 1000W brushless hub motor. Whether accelerating on flat urban asphalt or tackling steep incline roads, the F5 provides smooth, consistent power delivery.

    • 1000W Brushless Motor: Delivers instant torque for rapid acceleration and reliable load carrying.
    • 45° Max Climbing Angle: Superior gradeability enables effortless hill climbing without motor stalling.
    • 25 km/h Recommended Speed: Factory tuned for safe, legal commuting compliance across urban bike lanes.

    2. Long-Range Battery & Charging Dynamics

    Equipped with a high-capacity 52V 20Ah battery, the GOKEEP F5 offers extended range per charge while supporting dependable high-voltage output.

    Specification Performance Parameter
    Battery System 52 V 20 Ah Lithium-ion
    Maximum Range Up to 43 km per charge
    Charging Time 7 – 8 hours (0 to 100%)
    Waterproof Rating IPX5 Water Resistant

    3. All-Terrain Comfort & Safety Features

    Designed to absorb road vibrations and handle unpredictable weather conditions, the GOKEEP F5 comes fully equipped for versatile daily commuting:

    • 11-Inch Pneumatic Tires: Large 11-inch wheels offer increased traction, smooth roll-over capacity on rough pavement, and enhanced cornering stability.
    • NFC Smart LED Display: NFC keycard ignition integration prevents unauthorized access while presenting real-time telemetry (speed, battery voltage, trip distance).
    • Lightweight Aluminum Alloy Chassis: Weighing 24 kg net with a max payload capacity of 120 kg, balancing structural strength and portable maneuvering.
    • IPX5 Water Resistance: Protects internal electrical components and battery compartment from low-pressure water sprays and light rain splashes.

    4. Unboxing & Package Contents

    Every standard GOKEEP F5 box includes all necessary tools and documentation for quick assembly and immediate operation:

    • 1 x GOKEEP F5 Electric Scooter
    • 1 x 52V Battery Charger
    • 1 x Multi-function Tool Kit
    • 1 x User Manual

    Frequently Asked Questions (FAQ)

    Q1: What is the maximum weight limit and range for the GOKEEP F5 electric scooter?

    The GOKEEP F5 supports a maximum rider load of up to 120 kg (264 lbs) and delivers an estimated maximum riding range of up to 43 km on a full charge, depending on rider weight, terrain, and speed modes.

    Q2: How long does it take to fully charge the GOKEEP F5 battery?

    Using the official included battery charger, a full recharge for the 52V 20Ah lithium battery pack takes approximately 7 to 8 hours.

    Q3: Can the GOKEEP F5 be ridden in the rain?

    Yes. The GOKEEP F5 features an IPX5 waterproof rating, meaning it is protected against light rain and water splashes. However, continuous submersion or riding through deep puddles should be avoided to protect electrical systems.

  • Joyor S10S-Z (S10 / S10-S-Z) Maintenance, Brake Adjustment & Upgrade Guide

    Joyor S10S-Z (S10 / S10-S-Z) Maintenance, Brake Adjustment & Upgrade Guide

    Joyor S10S-Z Heavy-Duty Performance Overview

    The Joyor S10S-Z (also widely known by riders as the Joyor S10, S10-S-Z, or S10SZ) represents the pinnacle of Joyor’s high-performance dual-motor off-road scooter lineup. Built around a high-voltage 60V system architecture with twin 1000W brushless motors, this electric scooter requires regular maintenance to sustain its high-speed acceleration, braking force, and suspension dampening. This technical guide covers routine servicing, hydraulic brake bleeding, swingarm suspension tuning, and tire replacement for your S10S-Z / S10 series scooter.

    1. Hydraulic Brake Bleeding and Pad Replacement

    The Joyor S10S-Z utilizes front and rear hydraulic oil disc brakes to deliver responsive stopping power at high speeds. Over time, air bubbles can enter the hydraulic line, causing the brake levers to feel spongy or lose pressure.

    How to Bleed Hydraulic Brakes on the S10S-Z:

    • Inspect Mineral Oil Levels: Remove the reservoir cap on the handlebar lever and verify oil level. Use mineral oil designed for bicycle/scooter hydraulic systems.
    • Attach Bleed Kit: Connect a bleed syringe with mineral oil to the caliper bleed port and a capture bottle to the upper lever port.
    • Flush Air Bubbles: Slowly push oil through the bottom caliper while squeezing the brake lever gently to force trapped air bubbles out through the top reservoir.
    • Replace Brake Pads: Inspect pad thickness regularly. If friction material drops below 1.5mm, remove the retaining pin and install fresh semi-metallic or full metallic brake pads.

    2. Swingarm Suspension and Arm Adjustment

    Equipped with dual swingarms and spring-damper suspension, the S10-S-Z handles rough terrain, gravel, and urban pavement. Proper bolt torque and lubrication prevent squeaking and wobble.

    Suspension Care Routine:

    • Check Pivot Bolts: Inspect swingarm linkage bolts every 300 km (185 miles). Torque mounting bolts to manufacturer specifications (typically 18-22 Nm).
    • Lubricate Pivot Joints: Apply lithium-based grease or silicone spray lubricant to suspension pivot joints to ensure smooth compression and reduce noise.
    • Damping Adjustments: Verify spring preload settings match rider weight to prevent bottoming out on harsh bumps.

    3. 60V Battery Management & Charging Practices

    The high-capacity 60V 18Ah lithium battery powers dual 1000W motors. Adhering to strict battery care practices maximizes service life and cell balance.

    Metric Recommended Spec Maintenance Action
    System Voltage 60V Nominal Check full charge voltage (~67.2V) via LCD screen
    Storage Charge 50% – 70% Capacity Store in cool place if unused over 2 weeks
    Charger Type 67.2V Standard Charger Always plug charger into wall before scooter port

    4. Off-Road Pneumatic Tire Care and Replacement

    The 10-inch off-road pneumatic tires provide traction across loose dirt, sand, and asphalt. Correct tire pressure is critical to avoid pinch flats and premature rim wear.

    • Optimal Inflation: Maintain tire pressure between 45 to 50 PSI depending on rider weight and terrain type.
    • Sealant Application: Inject tire sealant through the valve stem to automatically repair minor punctures up to 3mm.
    • Tire Tread Inspection: Replace worn tread when groove depth drops below 1mm to preserve off-road cornering grip.

    5. Recommended Accessories and Upgrades for Joyor S10S-Z

    Enhance riding comfort, safety, and utility on your Joyor S10 / S10S-Z with official upgrades:

    • Heavy-Duty Handlebar Extenders: Mount additional lights, phone mounts, or GPS units without cluttering central controls.
    • Reinforced Fenders: Upgrade to high-impact splash guards for wet or muddy off-road trails.
    • Waterproof Storage Bags: Hard-shell frame bags designed to fit the front stem tube without interfering with steering geometry.

    Frequently Asked Questions (FAQ)

    Q1: Are Joyor S10, S10-S-Z, and Joyor S10S-Z the exact same scooter model?

    Yes. Joyor S10S-Z is the official updated model designation. Riders and community forums often refer to this model as the Joyor S10 or S10-S-Z. All key replacement parts, including 60V controllers, 10-inch off-road tires, and hydraulic brake components, are fully compatible across these naming variations.

    Q2: Why are my hydraulic brake levers feeling soft on my S10S-Z?

    Soft or spongy brake levers typically indicate air bubbles inside the hydraulic lines or low mineral oil volume. Performing a standard hydraulic brake bleed and topping up mineral oil will restore firm lever pressure and maximum braking efficiency.

    Q3: What tire pressure should I use for off-road riding on the Joyor S10S-Z?

    For optimal off-road traction and puncture resistance, keep tire pressure set between 45 and 50 PSI. Slightly lower pressure (around 42-45 PSI) can be used for extra traction on loose sand or dirt, provided rim bottom-out protection is maintained.

  • Joyor T10 NFC Smart Keycard Setup, Pairing & Emergency Reset Guide

    Joyor T10 NFC Smart Keycard Setup, Pairing & Emergency Reset Guide

    Joyor T10 NFC Smart Ignition System Overview

    The Joyor T10 electric scooter features an advanced NFC (Near Field Communication) keycard ignition system integrated directly into its color LCD throttle display. Designed to prevent unauthorized access and theft, the NFC security framework requires a verified encrypted signal card before powering on the 52V dual-motor system. This comprehensive guide covers keycard programming, adding secondary cards, setting up smartphone NFC emulation, and executing emergency resets if cards are lost.

    How the Joyor T10 NFC Ignition System Works

    Unlike traditional key ignition cylinders that can be picked or bypassed mechanically, the Joyor T10 display unit contains an embedded RFID reader operating at the standard 13.56 MHz frequency. When the power button is turned on, the LCD display activates in a locked state, displaying a blinking “CARD” or lock icon. Rolling or throttling the scooter is disabled until a paired card is tapped against the sensor region.

    Step-by-Step: Pairing New or Secondary NFC Cards

    Every Joyor T10 comes with two pre-paired master NFC keycards from the factory. If you purchase additional replacement cards or need to re-pair existing ones, follow this step-by-step procedure:

    1. Enter NFC Programming Mode: Long press the Power button on the display until the screen turns on and shows the lock icon.

    2. Master Card Authentication: Hold your original master card against the NFC sensing area (usually located at the lower center or back of the LCD housing) until you hear a long beep.

    3. Add New Card: Immediately tap the new unpaired NFC card against the sensor. The display will emit two quick beeps, confirming the new card UID has been saved to the controller memory.

    4. Exit Setup: Wait 5 seconds without tapping. The display will auto-save and exit programming mode.

    Setting Up Smartphone NFC Unlocking (Android & iOS)

    For added convenience, riders can duplicate their physical Joyor T10 card key code to an NFC-enabled smartphone or smart ring:

    Android Devices (NFC Wallet / Key Emulation)

    • Download an NFC Key Emulator or use your phone’s built-in Wallet app.

    • Scan your physical Joyor T10 card to read its unique 4-byte or 7-byte UID.

    • Save the card profile to your phone and enable “Tap to Pay / Transit” default emulation.

    • Tap your phone back against the T10 screen to unlock the scooter.

    Apple iPhones (iOS Shortcut / Wallet Integration)

    Due to iOS security restrictions on UID cloning, iPhone users can utilize the Apple Wallet transit card workaround or pair an encrypted third-party NFC sticker attached to the phone back.

    Emergency Reset Procedure: Lost All NFC Cards

    If both primary and secondary NFC cards are misplaced, follow this safety override to regain control of your scooter:

    ⚠️ Hardware Bypass Procedure (Card Lost)

    1. Disconnect the main battery pack by unscrewing the deck plate to prevent electrical arc.

    2. Unplug the 5-pin waterproof main cable connecting the handlebar display to the main controller.

    3. Wait 2 minutes to drain residual capacitor charge.

    4. Plug in a certified factory replacement Joyor T10 display unit (which comes with a pre-matched set of new NFC cards).

    5. Re-connect battery power and test system startup.

    Joyor T10 NFC Troubleshooting & Diagnostics

    Symptom Probable Cause Solution
    Display lights up but won’t accept tap Incorrect tapping zone or phone case too thick Tap card flush against the exact center of the screen housing; remove thick phone cases.
    Screen displays E-06 when tapping card Display-to-controller communication delay Check main handlebar harness connector; ensure waterproof plug pins are fully seated.
    Card beeps but throttle doesn’t respond Brake cut-off sensor engaged Verify brake levers fully spring back to home position (check Error Code E-04).

    🛒 Need Replacement NFC Cards or Displays?

    Order original Joyor T10 encrypted NFC keycards and display replacement kits directly from our official store.

    Shop Official Joyor T10 Accessories →
